DUAL-SCREEN

Dual-Screen integrates video recording, live broadcasting, and interactive function into one portable box.

Dual-Screen · Multi-touch · Versatile

Beijing Wenxiang dual-screen portable recording and broadcasting system adopts the notebook computer's clamshell ultra-quiet structure design, embedded with dual 15.6-inch LCD screen, one LCD screen displays the screen after the guide switch, and another LCD screen displays the guide interface, supporting touch operation. It can display 6-way preview screen and 1 main anchor screen, which can control camera rotation and zoom, screen switching, automatic hand switching, recording, stop, live broadcast, parameter setting and other operations.

Our system also supports 6 channels of lan connection for full HD input recording and broadcasting technology to ensure high quality of input signals.

The first to use 2.4G-5.8G dual-frequency synchronization support technology to transmit video and audio signals, faster transmission speed, anti-interference, no fluctuation of signal, stable.

Beijing Wenxiang PAD recording and broadcasting system consists of PAD recording and broadcasting machine, wireless PTZ camera, monopod, wireless mic, etc. It could compatible with multimedia teaching equipment such as electronic whiteboard, projector and DVD.
The PAD recording and broadcasting machine collects and broadcasts high-definition video images by collecting 5GWiFi signals from 3 wireless PTZ cameras and controlling them through the guidance system. The camera is mounted on the mobile monopod for easy carrying and placement.
The voice signals of teachers and students are collected by wireless microphones and directly input into the portable wireless recording host for real-time recording, live broadcast, storage, and the like.
The resource management platform can realize the functions of live teaching, post-on-demand viewing, resource management, excellent course selection, network teaching and research, etc. on the campus network or the Internet.

Record and Broadcast as You Go

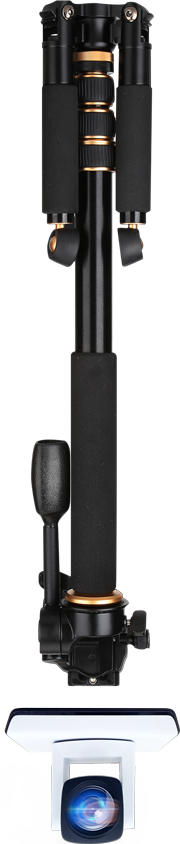

Get ready with full set of cameras and monopds

Main Features

Wireless Connection

Wireless connection between PAD and cameras, no wiring. Easy set up, record as you go.
Scan and Share

Share the QR code with your colleagues or friends, scan the QR code to enjoy the real-time live broadcast.
All Set for Full Angles Video

WenXiang Pad set including 3 cameras which can capture different angles when you recording. Flexible to select the best view you liked.
Real-time Interactive

Real time interactive with other PAD by video, voice and texting.

Technical Specification

Appearance
15.6" full tempered glass screen, baking varnished shell, and multi-point HD touch screen
Dimensions
(height*width*depth)

38.2cm*24.5cm*2.5cm
Video I/O
4-channel wireless HD (1080P@60) input, 1-channel HDMI input; 1-channel HDMIinput
Audio I/O

1-channel 3.5mm stereo input and 1-channel stereo output are available, and built-in stereo speaker are provided, achieving the local amplified sound output.
Coding Format
File format standard streaming media MP4/TS, AAC audio coding, video coding format H. 264
Record Mode
Resource mode, movie mode
WIFI
Supporting 5G wireless connection
Expansion Interface
1 built-in 10/100/1000M network interface
Hard disk Memory
built-in 1-2T hard disk storage
Service Voltage
Direct currency 12V
Battery Capacity
With built-in 4500mah battery, ultra-long standby time is available
Weight
1.92kg
Color
White/Black/Golden
Interactive function
The interaction under H. 323/SIP protocol is available at the state of 1-channel video recording
